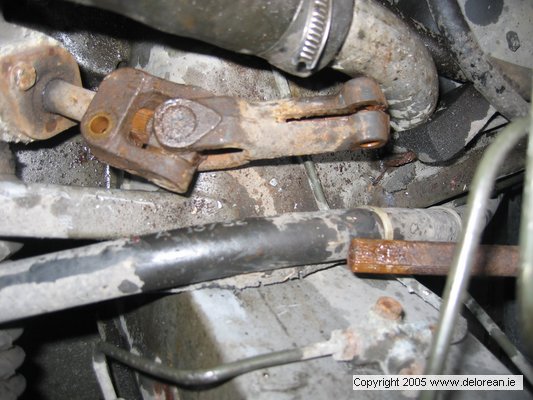

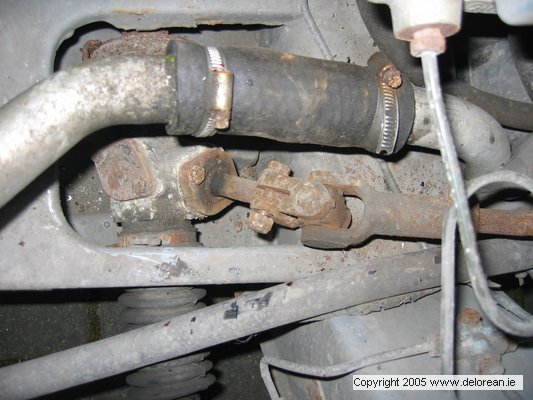

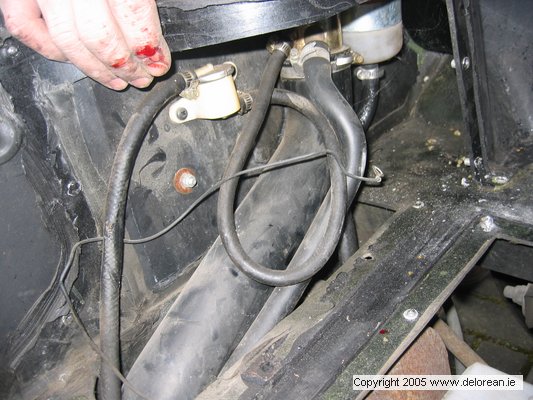

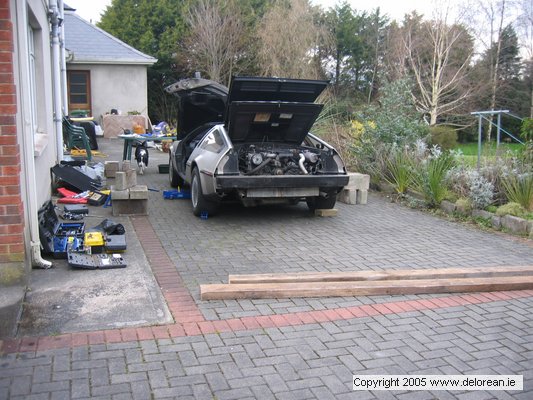

Under these access panels, you need to disconnect the brake master cylinder lines, clutch master cylinder lines, fuel lines, steering shaft, lines to heater core, and the fuel filler. We took a long time to remove the steering shaft as it was fairly rusty, and was hard to separate. We actually only got it fully separated during the lifting the GRP body phase, as when the body was partially lifted away from the frame, we then had the required room to remove the shaft from the lower joint.


533x400
533x400
533x400
533x400
533x400
300x400
533x400
533x400
533x400
533x400

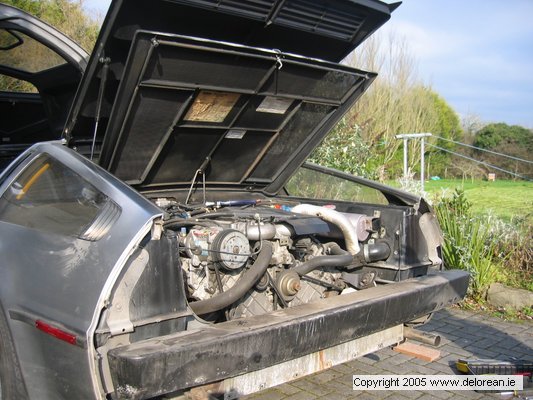

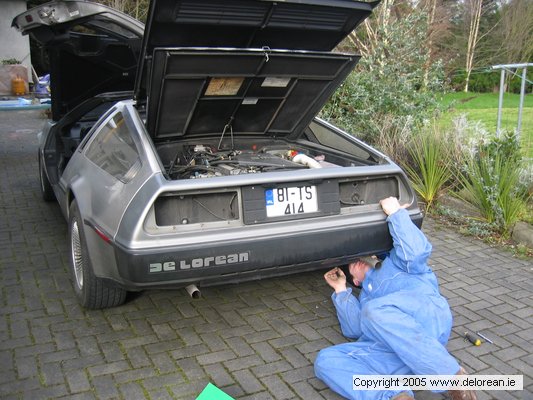

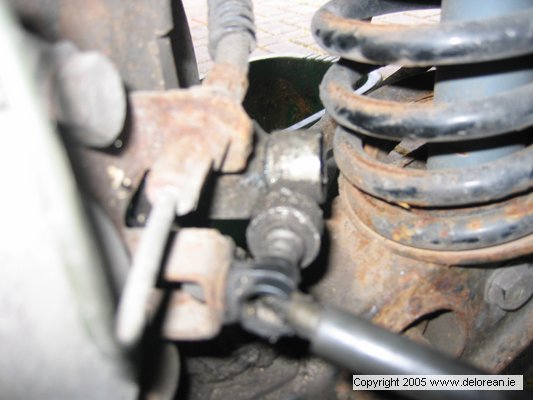

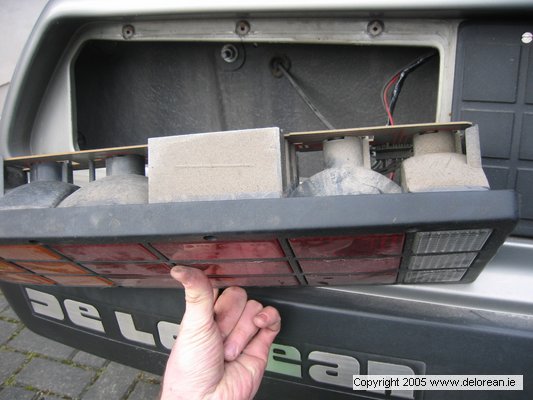

Also to be removed was the rear fascia, speedo cable (from behind front left wheel), AC lines to accumulator (from behind front right wheel), parking brake (handbrake) cables on each rear calliper, wiring loom under coil cover in engine bay, throttle cable, brake booster lines on both ends of the car, 2 ground wires from rear quarter panels to rear cross member of the frame, front headlight loom from washer bottle compartment in front left wheel area, charcoal canister in rear left side pontoon, hoses going to coolant overflow tank, trailing arm shields under the car, ignition fly lead on the distributor, oxygen sensor wire, vacuum lines to vacuum reserve can and heater valve at back of engine. Also, the battery cables have to be fed out the holes in the battery compartment as the body begins to lift away from the frame. You can see pictures of some of these components being disconnected above…


Goto the next page to see the body being separated from the frame!
