Frame stripdown



On Friday morning, we got up early again and got to work stripping the frame down.


533x400		 IMG_3731.JPG
533x400		 IMG_3732.JPG
533x400		 IMG_3733.JPG
533x400		 IMG_3734.JPG
533x400

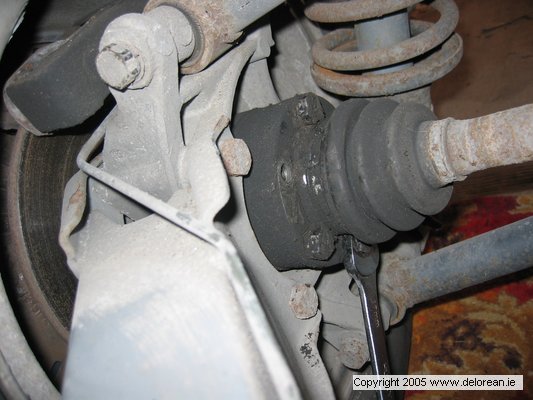

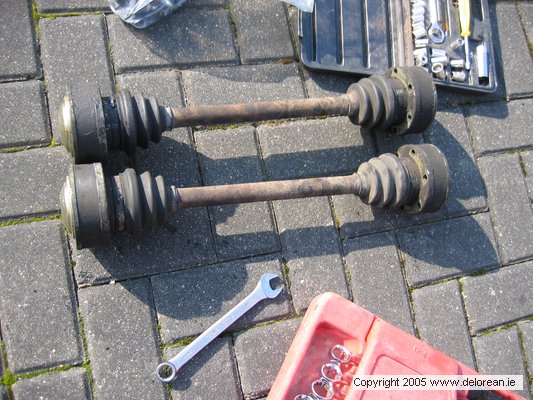

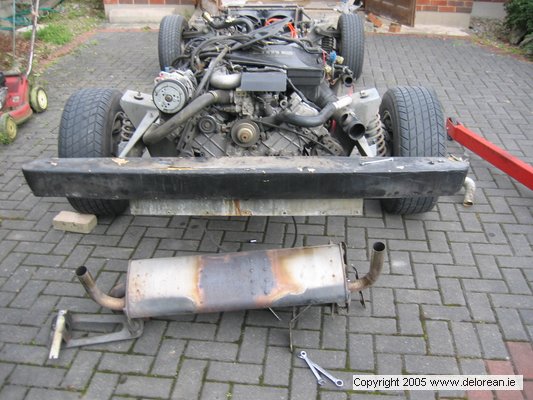

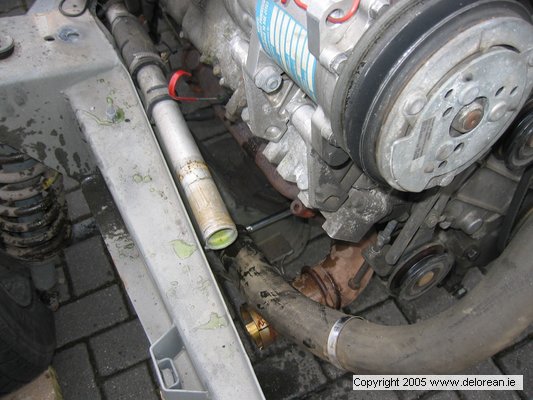

We started with the driveshafts, followed by the muffler, and all hoses attached to the engine…

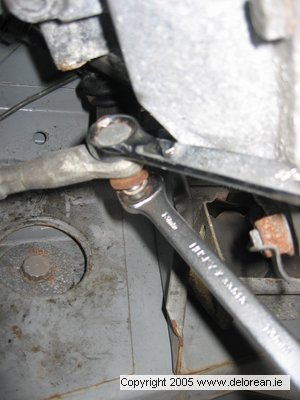

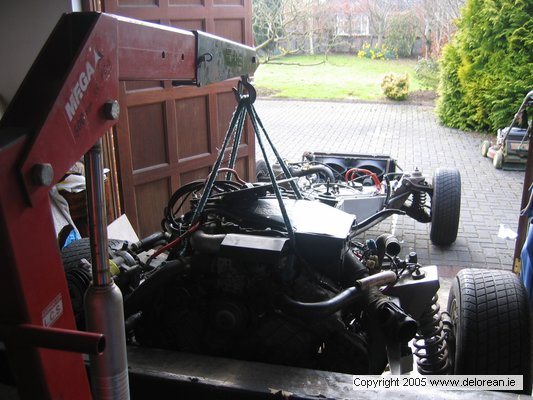

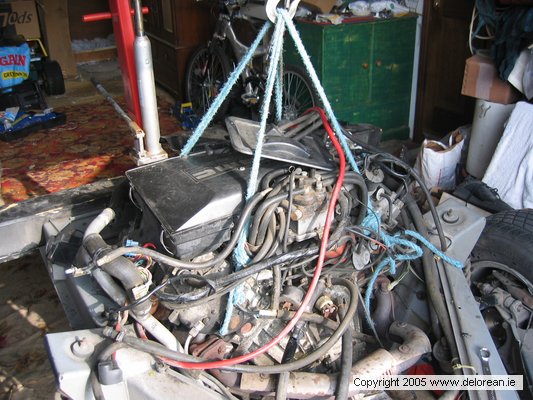

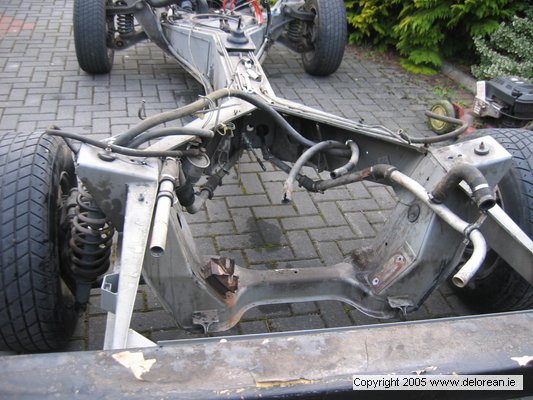

Then, we removed the gear shift linkage, unbolted the transmission and engine mounts, and hoisted the engine and transmission out in one piece. The passenger side engine mount would not separate from the engine, so instead we unbolted the mount from the frame, and left it attached to the engine as we lifted it out.


533x400		 IMG_3736.JPG
300x400		 IMG_3737.JPG
533x400		 IMG_3738.JPG
533x400		 IMG_3739.JPG
533x400
533x400		 IMG_3742.JPG
533x400		 IMG_3743.JPG
533x400		 IMG_3744.JPG
533x400		 IMG_3745.JPG
533x400

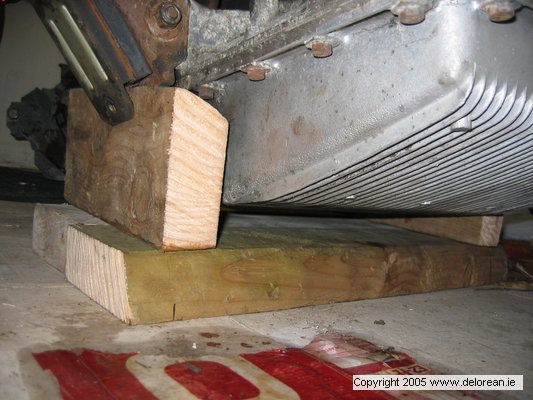

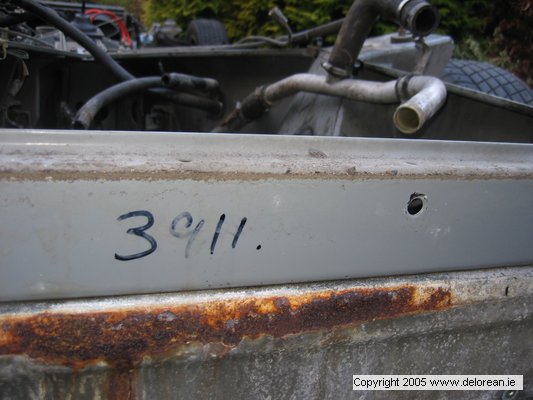

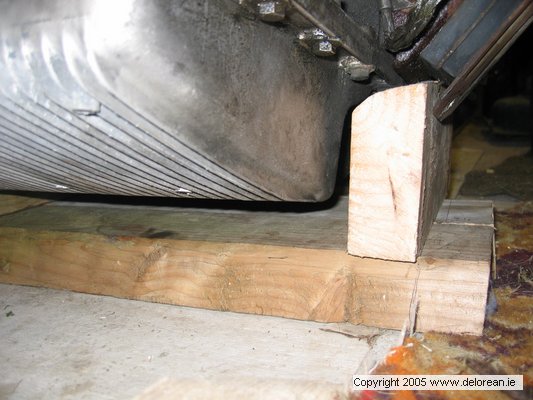

Maurice put together a nice wodden frame for the engine to rest on until it is put back in the car. Also notice in the pictures that my frame number is 3911 – as usual with DeLoreans, this does not match the VIN number of the car, which is 3810.



Onto the next page!
